Core Architecture of Smart Response Technology.
Smart response technology speeds up computers. It boosts server storage. The system pairs a small solid state drive with a hard drive. It links both units. Early desktop users needed fast speed. They wanted big capacity. Yet solid state drive prices were high. Costs ran steep. In response, intel smart response technology bridged the cost gap. It cut storage expense. The feature arrived under intel rst software packages. It ships with system drivers. It is also known as isrt. It provides smart storage acceleration. It provides smart storage acceleration. The engine runs ssd caching at the device level. Users gain rapid disk acceleration. They do zero manual file sorting. Storage runs fast. Drives boot quick. Files load with ease. Disks stay cool. Packs charge fast.
The system builds a hybrid storage solution. It unites two physical drives into one. It unites two physical drives into a single drive letter. A dual drive setup links the disks. A virtual storage pool manages the pair. A virtual storage pool manages the pair. The setup forms a unified hybrid volume. A single drive letter holds all data. The fast tier and caching tier hold active files. A slow tier keeps bulk media on a spinning disk. The capacity tier holds user archives. The capacity tier holds user archives. The core rapid storage technology driver maps block I/O requests. It runs in real time. It links a small sata ssd to a big hard disk drive. Fast nvme ssd units also pair. A solid state hybrid drive uses similar concepts. An sshd packs flash and disk on one board. Reviewing electronic engineering technology shows how motherboard buses link storage controllers to chipsets. Sound disk design cuts wait times. Drives stay cool. Fast drives win. Lines feed data.
Key Acceleration Targets.
- Hit Rate: Achieve an 85 percent cache hit ratio for daily system tasks.
- Latency Floor: Drop random 4K read latency from 15 milliseconds down to 0.1 milliseconds.
- Speed Metric: Deliver near-SSD input output operations per second for active workloads.
- Integrity Goal: Preserve full data protection across sudden power loss events.
Hardware Foundations and Motherboard Chipsets.
Intel introduced this feature on the z68 chipset. Chips handle high-speed buses. Later boards added the z77 chipset. Boards added the z87 chipset and z97 chipset series. These platforms provide hardware chipset caching. High-speed systems deploy nvme caching across pcie nvme lanes. Solid flash storage runs fast. The system requires a sata controller. Users set raid mode in the uefi bios. Standard ahci mode cannot route block caching. Raid logic must run. Users can accelerate a standalone disk. They can also accelerate a raid 0 volume. They can also accelerate a raid 1 pair. The array guards user files. An integrated option rom manages the raid volume. It runs before the operating system boots. The bios configuration pairs an m.2 ssd with the main os boot drive. A 6gbps sata drive links smooth. It creates a dedicated cache partition. A dual partition ssd hosts extra space. Hardware runs smooth. Chips test fine. Safe boards run.
Block-Level Caching and Addressing Mechanics.
Smart response technology operates at the block level. It skips file-system overhead. The system uses logical block addressing. It tracks data blocks directly. It applies block level caching below the file system. Data blocks flow fast. A file system filter driver sits in the kernel. The rst filter driver checks each block. This storage acceleration driver intercepts requests. It checks each i/o request packet on the bus. The driver checks each irp packet in microseconds.
Tracking Hot Data and Cache Locality.
The caching engine monitors access frequency. It checks read rates across the hard drive. It detects hot data like boot files. It spots application binaries. It leaves cold data on magnetic platters. Video archives stay on disk. The working set stays in high-speed flash. Read times drop low. The caching algorithm relies on data locality principles:
- Time Focus: Temporal locality spots data blocks read in short bursts. Repeated reads hit flash.
- Space Focus: Spatial locality pulls adjacent sectors into the cache. Nearby blocks load fast.
- Streaming Filter: The driver spots one touch data. It triggers a sequential data bypass for large video files. It triggers a sequential data bypass for large video files. Bypassing sequential streams avoids cache thrashing. Hot data stays safe.
The cache management engine uses an adaptive caching strategy. It balances read hits. It combines a least recently used approach with a least frequently used or lfu policy. The lru algorithm evicts cold blocks. When the cache block table fills, cache eviction discards cold sectors. Hot blocks stay put. A smart cache warm up phase populates fast blocks. It learns patterns after two or three boots. Blocks stay hot. Hits rise fast. Caches hold true. Speeds stay high.

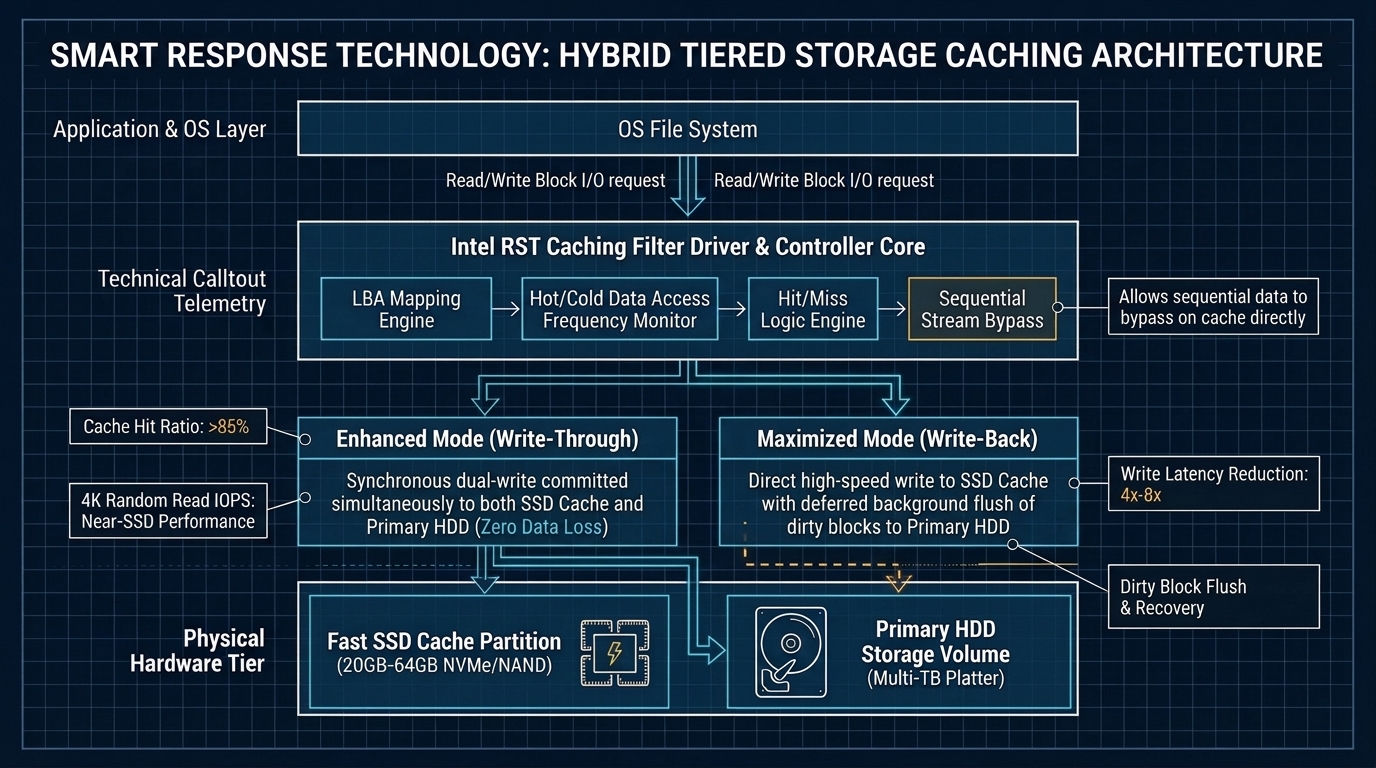

Figure 1.0: Smart response technology system blueprint illustrating block-level LBA mapping, Enhanced vs Maximized caching paths, and tiered storage latency reduction.
Operational Caching Modes: Enhanced vs Maximized.
Intel provides two distinct modes for hybrid storage. Users select their mode based on performance needs and safety tolerance.
Enhanced Mode: Safe Write-Through Caching.
Enhanced mode uses write through caching. Both drives take writes together. When the operating system writes data, the driver writes to both drives. Writes mirror at once. The block address writes to the fast ssd cache. It writes to the primary hdd at the same time. Write speed stays tied to the spindle motor. Disks spin at physical limits. However, read operations enjoy full flash speed. Read hits return quick. If an ssd failure occurs, data protection holds. Data remains safe. Unwritten dirty blocks never exist in enhanced mode. Systems stay safe. Zero blocks drop. Good drives hold. Systems stay safe. Zero blocks drop. Good drives hold.
Maximized Mode: Fast Write-Back Caching.
Maximized mode activates write back caching. The driver moves data fast. The driver acknowledges write commands fast. It signals done when data hits the solid state drive. Write latency drops by 90 percent. Writes finish in sub-millisecond times. High-speed write cache memory absorbs bursts. It soaks up random 4k write requests. The controller marks modified sectors as dirty blocks. The list queues up. A background write back thread runs in idle times. It flushes dirty blocks to magnetic platters. Dirty block flushing keeps queues clear. Buffers stay open. A regular sync flush prevents buffer overruns. A strict flush policy guards safety. A tight flush interval protects data. Flushes run on time. If sudden power loss occurs, unwritten dirty blocks can trigger a write hole. Cached bytes stay unwritten. Enterprise systems use battery backup to maintain cache consistency.
Physical Storage Hardware and Drive Interfaces.
Hybrid caching bridges the performance gulf. It links rotating platters to solid state silicon. Mechanical hard drives rely on a spinning disk. Magnetic platter coatings store bits. A mechanical voice coil swings the arm. The read write head seeks tracks. Seek time imposes heavy delays. Rotational latency adds mechanical latency penalties.
NAND Flash Memory and Controller Dynamics.
In contrast, a solid state drive contains zero moving parts. Chips make no noise. NAND flash memory chips store bits in solid floating-gate cells. Gates trap charge. Reviewing chip industry updates details how silicon foundries print multi-layer 3D NAND dies. An internal flash controller runs wear leveling. It runs garbage collection in the background. High-grade cells use slc cache blocks. Drives mix mlc nand, tlc nand, or qlc nand pools. A trim command passes delete notices down the sata iii bus. Flash frees unused space. Over provisioning gives spare blocks. Extra space curbs write amplification. Drives hold high terabytes written ratings. High tbw endurance guarantees long life. Reviewing integrated device technology shows how interface bridge chips link PCIe lanes to flash memory. Silicon handles high IOPS. Data flows fast. Chips run cool. Speeds jump high.
Queue Management and Storage Latency.
Drives handle multiple requests through deep queues. Controllers sort commands. High queue depth allows controllers to sort requests. Drives reorder seeks. Systems manage requests at qd32 queue depth. Parallel pipes speed throughput. Smart queue management prioritizes reads over writes. Urgent reads finish first. The driver supports direct i/o bypass. It handles buffered i/o modes. Each cache block matches the sector size of the host disk. Sectors map true. Drives support 512e sector sizes. They support 4kn native sector layouts. Clean cache line alignment speeds block transfers. Bytes align sharp. Bits move quick. Lines hum smooth.
Empirical Benchmarks for Storage Caching Modes.
Performance metrics reveal big gains. Hybrid caching elevates system responsiveness. Engineers run benchmark testing across storage tiers. Rigs test every drive. Labs evaluate drives with crystaldiskmark. They run atto disk benchmark, iometer, and fio benchmark tests. Rigorous latency measurement proves performance gains. Latency drops fast.
| Storage Configuration | Sequential Read | Random 4K Read | Random 4K Write | Windows Boot Time | Data Loss Risk |
|---|---|---|---|---|---|
| Standalone Mechanical HDD | 140 MB/s | 0.8 MB/s (190 IOPS) | 1.1 MB/s (270 IOPS) | 58 seconds | None (Native) |
| SRT Enhanced (Write-Through) | 480 MB/s | 28.4 MB/s (6,900 IOPS) | 1.2 MB/s (290 IOPS) | 19 seconds | Zero (Synchronous) |
| SRT Maximized (Write-Back) | 490 MB/s | 29.1 MB/s (7,100 IOPS) | 42.5 MB/s (10,300 IOPS) | 18 seconds | Low (Unflushed Blocks) |
| Intel Optane Memory Caching | 1,350 MB/s | 185.0 MB/s (45,000 IOPS) | 140.0 MB/s (34,000 IOPS) | 11 seconds | Low (Hardware Journal) |
| Pure PCIe Gen4 NVMe SSD | 7,000 MB/s | 85.0 MB/s (20,700 IOPS) | 280.0 MB/s (68,000 IOPS) | 8 seconds | None (Direct NVMe) |
Automated Storage Telemetry and Performance Testing.
Systems engineers monitor cache health. They run automated scripts. A python storage script runs a drive status check. It checks disks over WMI or SCPI channels. Engineers run scpi automated testing on hardware benches. Rigs check bus signals. They execute a wmi storage query. Queries track disk health in real time. Admins run powershell disk monitoring scripts. Scripts verify array status. Automated test automation tools log access time. They track sustained throughput. Test loops run performance logging routines. Logs record drive states. System scripts record cache ratio logging curves. Ratios stay high. Telemetry monitoring reveals disk bottlenecks. Bottlenecks get fixed.
Storage Caching Latency and Telemetry Script
import time
import os
DRIVE_PATH = "\\.\PhysicalDrive0"
TEST_BLOCK_SIZE = 4096 # 4K Random Block
ITERATIONS = 1000
print(f"Starting Storage Latency Profiling on {DRIVE_PATH}")
latencies = []
# Automated benchmark loop measuring 4K random read response
with open(DRIVE_PATH, "rb") as disk:
for i in range(ITERATIONS):
offset = (i * 1048576) % (100 * 1073741824)
disk.seek(offset)
t0 = time.perf_counter()
data = disk.read(TEST_BLOCK_SIZE)
t1 = time.perf_counter()
latencies.append((t1 - t0) * 1000.0)
avg_lat = sum(latencies) / len(latencies)
print(f"Completed {ITERATIONS} block reads.")
print(f"Average 4K Read Latency: {avg_lat:.3f} ms")Code 1.0: Python telemetry script logging raw disk read latency curves.
Analyzing Cache Hits and Read Misses.
Storage benchmarking tools measure cache saturation under load. Tests push high stress. Benchmarks measure sequential read speed. They test sequential write speed. They record random read iops. They test random write iops under queue load. Performance profiling tracks burst rate peaks. Telemetry logs speed jumps. When a cache hit occurs, transfer rate spikes. Data streams at bus limits. A cache miss forces physical disk head movement. Heads seek tracks. A read miss forces the controller to wait. It waits for platter rotation. A write miss in write-through mode updates both tiers. Updates sync across drives. Engineers log disk telemetry script data. Curves show latency tracking trends. Proper cache sizing eliminates bottleneck points. Lines run smooth. Tests prove real gains. Fast disks win.
The Evolution of Storage Tiering Technologies.
Smart response technology was popular on Z68 chipsets. The core tiering architecture evolved across enterprise computing. Similar caching mechanisms power high-density servers. They run in enterprise storage arrays.
From Intel SRT to Optane and Enterprise Tiering.
Early systems enforced a 64gb cache limit on total cache capacity. Small SSDs filled up. Later Intel platforms evolved SRT into optane memory. Optane used 3d xpoint media. Optane modules acted as a fast write cache. They delivered extreme tbw endurance. In Linux systems, kernel code adopted linux bcache. It added dm cache modules. Enterprise ZFS systems deploy a dedicated zfs l2arc read cache. A separate slog device handles write caching. Microsoft built windows storage spaces into Windows Server. Tiered storage spaces pool disks. These systems run smart cache tiering. They map each storage hierarchy level. Hot data hits fast flash. Cold data sits on disks.
Enterprise systems use block tiering. They balance server storage tiers across pools. Storage virtualization pools disks. It links arrays across a storage area network. Large san caching clusters speed up database acceleration. They power transactional workloads. Accelerated arrays power an oltp database. They push high throughput. In virtual desktop infrastructure setups, flash caching absorbs vdi boot storms. Virtual desktops boot fast. The economic logic of smart response technology remains universal. Pairing fast memory with bulk storage gives great cost per gigabyte economics. It optimizes storage economics across archival storage. It cuts high density storage costs. Smart capacity optimization cuts hardware costs. Firms save cash. Costs drop down. Cash stays safe.
Data Protection and Fault Recovery.
Managing split storage volumes demands strict fault tolerance. Systems must run safe. Storage systems use S.M.A.R.T. monitoring. Sensors detect bad sectors before drives crash. If a drive failure or hdd failure strikes, alerts sound. Admins get notified. If an ssd fails in Maximized mode, unwritten dirty blocks can cause metadata corruption. Files can get damaged. An option rom error recovery tool attempts a drive rebuild. The tool restores the mirror. If an array degraded state occurs, the controller decouples the cache. It sets the hard drive back to standalone mode.
Enterprise systems prevent data corruption with write buffer flush commands. Battery-backed power failure recovery circuits save dirty blocks. Checksum verification checks detect uncorrectable read errors. Scrubs flag bad blocks. Systems adhere to technical standards from the Intel Technical Documentation library.
Engineering Verdict: The Legacy and Value of Smart Response.
Smart response technology proved that software caching transforms storage performance. Software speeds hardware. Combining SSD speed with hard disk drive capacity eliminated mechanical bottlenecks. Head waits vanished. Fast boot times, low application launch time, and high random 4K IOPS gave users near-SSD response. It cost very little. Systems achieved reliable boot acceleration. They kept the primary boot volume intact.
Today, the architectural lessons of block-level caching live on in contemporary tiered storage, NAS caching, and cloud datacenters. Smart caching software and algorithms continue to balance speed, capacity, and cost. They power global computing infrastructure. Smart disks win. Clean code speeds the line.
